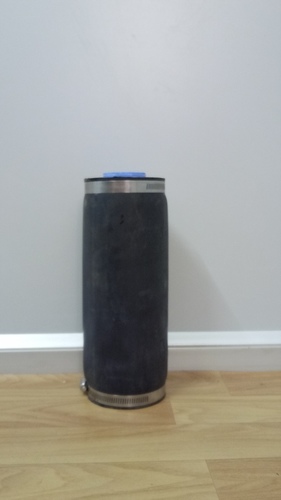

Designed under the guidance of expert professionals, the Fine Bubble Vertical Tube Diffuser offered by the company is acknowledged by its sophisticated design. Owing to its reliable diffusion technique, this Fine Bubble Vertical Tube Diffuser remits excellent performance. This Fine Bubble Vertical Tube Diffuser is highly cost-effective in nature.
Appreciated For
Specification
Sizes | Ø90mm x 250mm |
Shape of Diffuser | Vertical Tube Diffuser |
Type of Bubble | Fine Bubble |
MOC of Membrane | EPDM/Silicon |
Detail of Fittings per diffuser | Pipe support,2 Nos. S.S. membrane clips, adaptor. |
MOC of Membrane Support | PVC PIPE |
MOC of Membrane Clips | SS |
MOC of Diffuser Male Adapter | ABS |
Operating Temperature of Membrane | 85 deg. Celsius |
Temperature Tolerance | Max 85 deg. Celsius |
Nipple attached to diffuser | 1" x3" |
Dimensions of Bubble | >1mm |
Air put through rate | 3 to 4m3/hr per diffuser |
![]() |
