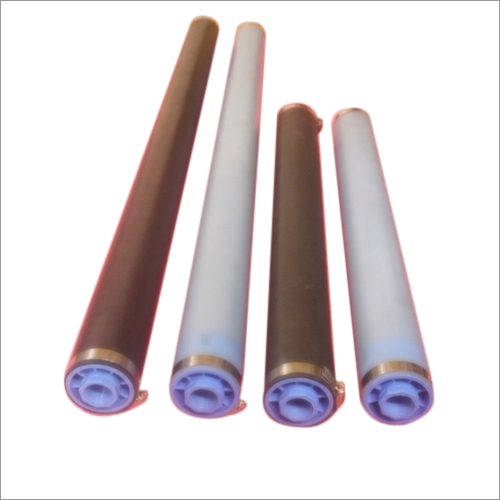

Fine Bubble Tube Diffuser
Our company is professionally manufacturing and exporting Fine Bubble Tube Diffuser. Available in different specifications, these tube diffusers require less installation time than disc diffusers. To make these tube diffusers as per industrial standards, we source tested quality materials from reliable vendors of the market. Extensively used in grit chambers and equalization basins for waste water treatment, Fine Bubble Tube Diffuser membranes are extruded from low extractable oil content EPDM polyurethane, Silicon or Nitrate.
Specifications
FINE BUBBLE TUBE DIFFUSER | 90MM X 1000MM | 63MM X 1000MM | 63MM X 610MM |
Shape of Diffuser | Tube Type | Tube Type | Tube Type |
Type of Bubble | Fine bubble | Fine bubble | Fine bubble |
MOC of Membrane | EPDM / silicon | EPDM / silicon | EPDM / silicon |
MOC of Membrane Support | PVC PIPE | PVC PIPE | PVC PIPE |
MOC of Membrane Clips | SS | SS | SS |
MOC of Diffuser Male Adapter | ABS | ABS | ABS |
Operating Temperature of Membrane | 85 deg. Celsius | 85 deg. Celsius | 85 deg. Celsius |
Nipple attached to diffuser (inch) | 1x3 | 3/4 x 3 | 3/4 x3 |
Dimensions of Bubble | 1mm | 1mm | 1mm |
Air put through rate | 11 to 14m3 per hr | 8 to 10m3 per hr | 4 to 6m3 per hr |
![]() |
